3166

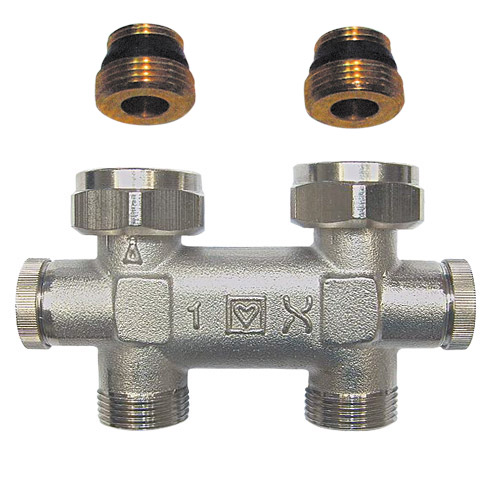

HERZ-3000 TP-bypass body for one-pipe systems
Straight model for one pipe systems
for refurbishment of existing installations and Heating
systems with old radiators, manufactured by JAGA,
Stelrad, BZW or therma panel.
Center distance 40 mm to existing pipe installations
Radiator connection 50 mm centres and contrary flow
and return directions.
Nipple 1/2.
Not stocked in the UK
Product List
| Code | Qty | Product | Description |
|
Order |
|---|---|---|---|---|---|
| 1316632 | HERZ-3000 TP-bypass body for one-pipe systems | Straight model |
|
|
Downloads
