Herz Valves UK Ltd. - Pre-insulated Multi-layered Composite pipe PE-RT
Feel the Water
 Pre-insulated Multi-layered Composite pipe PE-RT

C160/200/260/320

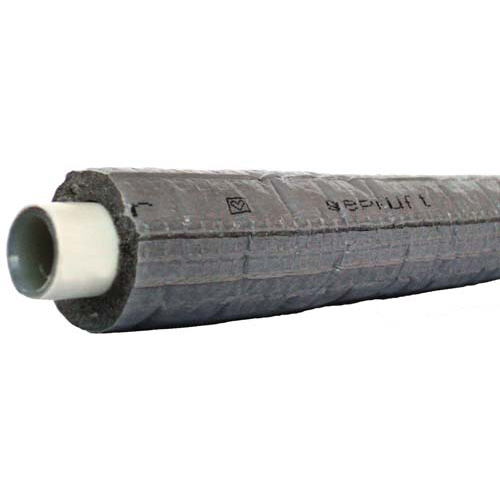

Pre-insulated Multi-layered Composite pipe PE-RT

Pre-insulated Muti-layered composite pipe PE-RT.

Multilayer pipe for heating and air conditioning installations.

LDPE foam with PP coating, Thermal conductivity of 0.04 W/mK as per DIN EN 8497
Reaction to fire according to DIN 4102 B1 CFC and HCFC free Water vapor diffusion number ≥ 6000 to 52 615 DSIN

Delivered in rolls.

Product List

Code Qty Product Description
  • Pipe size
  • Length
  • Insulation
Order
3C16006 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.4mm
  • 16 x 2
  • 100m
  • 6mm
3C20006 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.4mm
  • 20 x 2
  • 50m
  • 6mm
3C26006 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.5mm
  • 26 x 3
  • 50m
  • 6mm
3C32006 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.5mm
  • 32 x 3
  • 25m
  • 6mm
3C16009 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.4mm
  • 16 x 2
  • 100m
  • 9mm
3C20009 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.4mm
  • 20 x 2
  • 50m
  • 9mm
3C26009 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.5mm
  • 26 x 3
  • 50m
  • 9mm
3C32009 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.5mm
  • 32 x 3
  • 25m
  • 9mm
3C16013 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.4mm
  • 16 x 2
  • 50m
  • 13mm
3C20013 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.4mm
  • 20 x 2
  • 50m
  • 13mm
3C26013 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.5mm
  • 26 x 3
  • 25m
  • 13mm
3C32013 Pre-insulated Multi-layered Composite pipe PE-RT Aluminium thickness 0.5mm
  • 32 x 3
  • 25m
  • 13mm
