3066

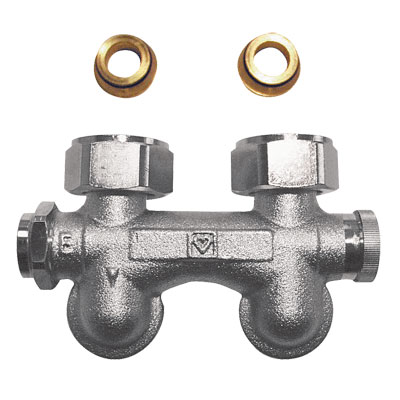

HERZ-3000 Bypass Body Angle model, left-side draining
Angle model for one and two pipe systems
With presetting, isolation, drain and fill functions
Connection branch-distance between centres is 50 mm, radiator connection G 3/4 with cone seal, freely moving nut. Pipe connection with external thread G 3/4, with cone seal, for compression adapter. 2 cone sockets are included. Compression adapters have to be ordered separately.
Not stocked in the UK
Product List
| Code | Qty | Product | Description |
|
Order |
|---|---|---|---|---|---|
| 1306611 | HERZ-3000 Bypass Body | Angle model, left-side draining |
|
|
