Herz Valves UK Ltd. - HERZ-SWITCHFIX, Reverse Distributor for Two-Pipe Systems
Feel the Water

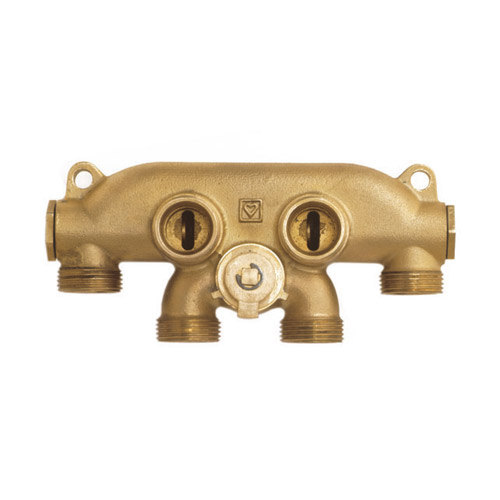

HERZ-SWITCHFIX, Reverse Distributor for Two-Pipe Systems

3030

HERZ-SWITCHFIX, Reverse Distributor for Two-Pipe Systems

For appropriate flow and connection without crossover of radiator and piping. Advance and reverse motion of heating can be changed by means of adjusting spindle. The pipes can be freely installed. The adjustment of the radiator flow direction can be done subsequently. The radiator connection can be shutoff. Delivery includes flush box and cover. Connection G 3/4 with cone seal to radiator. Radiator connection with external thread G 3/4, with cone seal, for compression adapter. Compression adapters have to be ordered separately.

Product List

Code Qty Product Description
  • DIM
Order
1303001 HERZ-SWITCHFIX, Reverse Distributor for Two-Pipe Systems
  • G 3/4


Project
