7783

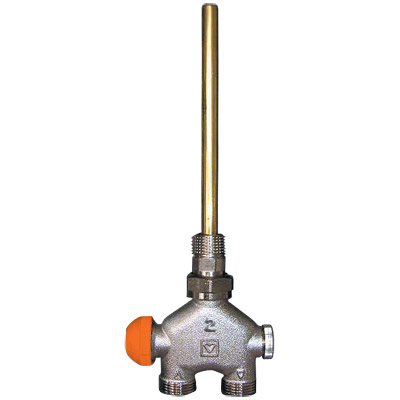

HERZ-VUA-40-Four-Way Valve Straight model for two-pipe system
Central or lateral radiator connection from below, with flat seal, submerged pipe l = 150 mm, Ø =11 mm. Pipe centre distance 40 mm. The radiator can be removed while the system is under pressure, the valve upper part can be changed by means of HERZ-Changefix Tool. Pipe connections G 3/4 with cone. Pipe connections have to be ordered separately.
Product List
| Code | Qty | Product | Description |
|
Order |
|---|---|---|---|---|---|
| 1778341 | HERZ-VUA-40-Four-Way Valve Straight model for two-pipe system |
|
|
||
| 1778351 | HERZ-VUA-40-Four-Way Valve Straight model for two-pipe system |
|
|
