Herz Valves UK Ltd. - HERZ-3000 Bypass Body Angle model, left-side draining
Feel the Water

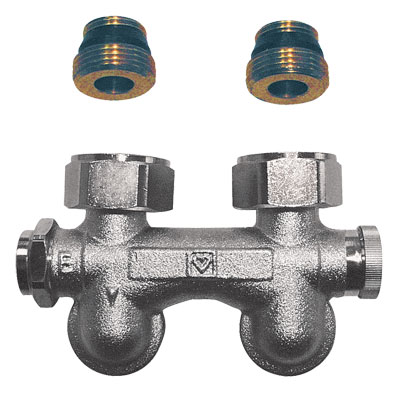

HERZ-3000 Bypass Body Angle model, left-side draining

3066

HERZ-3000 Bypass Body Angle model, left-side draining

Angle model for one and two pipe systems

With presetting, isolation, drain and fill functions

Connection branch-distance between centres is 50 mm, radiator connection R 1/2, freely moving nut, 2 connection nipples are included. Pipe connection with external thread G 3/4 with cone seal for compression adapter. Compression adapters have to be ordered separately.



Not stocked in the UK

Product List

Code Qty Product Description
  • DN
  • DIM
  • Thread
Order
1306612 HERZ-3000 Bypass Body Angle model left-side draining
  • 15
  • 1/2
  • G 3/4
