Herz Valves UK Ltd. - STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
Feel the Water

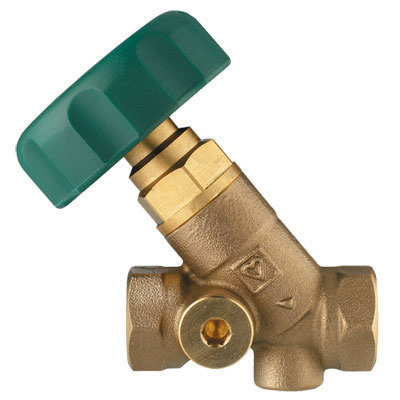

STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)

4125AWD

STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)

Dezincification resistant brass, * Two bores 1/4 and one screw plug 1 0273 09 is mounted. * Threaded ends on both sides according to ISO 7/1. * Draining is possible. Drain fittings have to be ordered separately. * not rising spindle, Spindle seal from elastic double O-Ring, Upper part is sealed by O-Ring seal im body. * The sealing material is made of satndards acceptable material. * Volume flow class VB, fittings group I, according to ÖNORM EN 1213. Certified and registered acc. ÖVGW.

Product List

Code Qty Product Description
  • DN
  • l/s
Order
2412571 STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
  • 15
  • 0,5
2412572 STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
  • 20
  • 1,0
2412573 STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
  • 25
  • 1,75
2412574 STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
  • 32
  • 3,0
2412575 STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
  • 40
  • 4,0
2412576 STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
  • 50
  • 6,75
2412577 STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
  • 65
  • 11,0
2412578 STRÖMAX-AW-Isolating Valve, inclined model Rp (female thread)
  • 80
  • 16,0
