4006 SMART

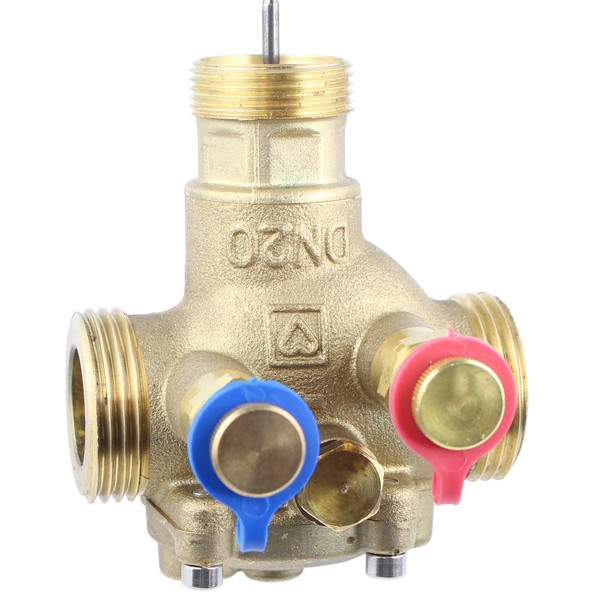

Pressure Independent Control Valve SMART Male Thread

PN16 PICV SMART

Return mounted, compact design, DZR brass body, external flat faced thread connection. Connections have to be ordered separately.

Two test points for measuring the differential pressure across the valve. Designed for low flowrates.

Actuator mounting threaded connection M 28 x 1.5, control stroke 4.0 mm. The actuating drive is not included.

Code	Product	Description	Thread DN l/h	Order
1400630	HERZ PICV SMART	Male thread	G 3/4 15 LF 20 - 100	
1400639	HERZ PICV SMART	Male thread	G 3/4 15 MF 40 - 200	
1400651	HERZ PICV SMART	Male thread	G 3/4 15 SF 160 - 800	
1400671	HERZ PICV SMART	Male thread	G 3/4 15 HF 240 - 1,200	
1400652	HERZ PICV SMART	Male thread	G 1 20 SF 240 - 1,200	
1400672	HERZ PICV SMART	Male thread	G 1 20 HF 400 - 2,000	
