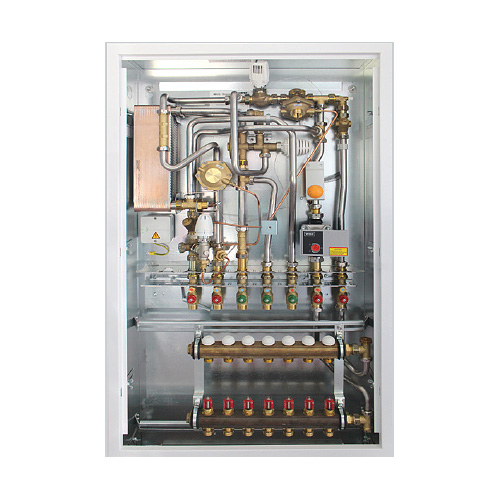

Compact substation for drinking water systems and radiator heating utilising a counter current heat exchanger made of Copper brazed stainless steel. Central controller for hot water only operates as a pressure drop is detected when a hot tap is opened. Assembly is available in surface mounting or flush-mounted versions. Pipe connection to an HIU is realised by means of a patented mounting system with pre-mounting unit. This unique installation system saves the installer the often complicated and time-consuming calibration and adjustment measures required on existing (pre-) installations. Ball valves can be connected to the floor.

• Constant readiness for hot water even in summer mode by temperature controlled summer bypass optional
• Differential pressure controller with fi xed DP (50 kPa) fi tted on the primary side
• Differential pressure controller with fi xed DP (13 kPa) fi tted on the heating as a zone valve with a thermo electric drive for regulating the room temperature
• pump group to control the supply temperature for low temperature systems
• safety temperature controller
• Adaptor for cold water meter 80 mm
• Adaptor for heat meter 110 mm
• Strainer with fi ne-mesh screens for heating systems on the supply primary pipe and return secondary pipe.
• distributor made of brass, flow distributor with control inserts with flow rate display and return distributor with thermostatic valves.
• Distributor mounting brackets
• Adapter and connections pre-assembled in cabinet made of galvanized steel sheet, front frame and door powder coated, white (RAL 9010). Adjustable installation depth and cabinet height, with removable pipe rail tracks.
• Max. operating temperature 90°C
• Max. operating pressure 10 bar
• Min. static cold water pressure 2.8 bar
• Tap output 15 l/min (10/50°C)
