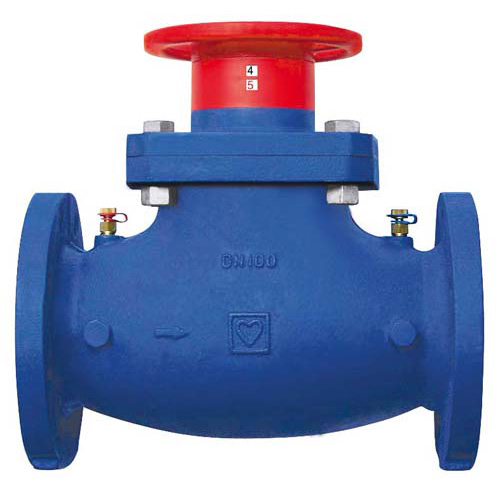

STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points

4218

STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points

Cast iron body GJL 250 according to EN 1561, flange according to EN 1092, PN 16, length according to ÖNORM EN-558-1, basic series 1, blue enamel coating. Valve upper part made of cast iron GJL 250, with non-rising spindle. Spindle seal by means of double O-Ring. Presetting step is shown on the digital display. Test points 1 0284 and presetting marker 1 6517 05 are included. Test points position optional.

Product List

Code Qty Product Description
  • DIM
  • kvs
 Order
1421880 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 50
  • 34,96
1421881 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 65
  • 66,94
1421882 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 80
  • 106,78
1421883 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 100
  • 169,45
1421884 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 125
  • 255,79
1421885 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 150
  • 389,54
1421886 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 200
  • 676,33
1421887 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 250
  • 1082,72
1421888 STRÖMAX-GF, Double Regulating Valve flanged version Screw-down model with test points
  • 300
  • 1784,91
