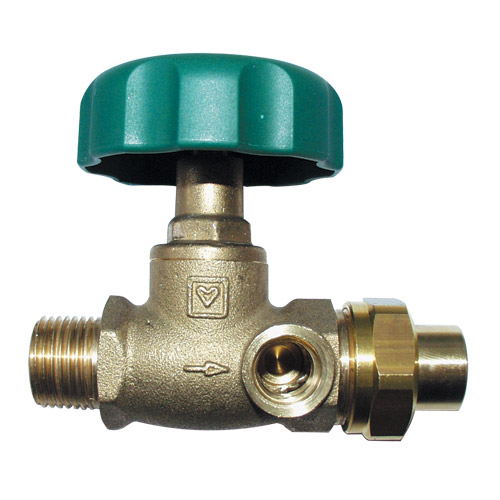

HERZ-Isolating valve, straight pattern male thread x male thread + soldered union

4215AW

HERZ-Isolating valve, straight pattern male thread x male thread + soldered union

both sides have been drilled,a plug has been mounted dezincification resistant brass,yellow model seal (from standard acceptable material). Volumen flow class VA, ÖNORM EN 1213. Max. operation temperature 90 °C. Max. operation pressure, 10 bar max. Differential pressure on closed seat 10 bar. accessory: 2 0275 09 charging & draining valves have to be ordered separately.

Product List

Code Qty Product Description
  • DN
  • l/s
  • Rohr Ø mm
 Order
2421521 HERZ-Isolating valve, straight pattern male thread x male thread + soldered union
  • 15
  • 0,20
  • 15
2421522 HERZ-Isolating valve, straight pattern male thread x male thread + soldered union
  • 20
  • 0,40
  • 18
2421523 HERZ-Isolating valve, straight pattern male thread x male thread + soldered union
  • 25
  • 0,70
  • 22
