HERZ-Isolating valve, straight pattern

4215AW

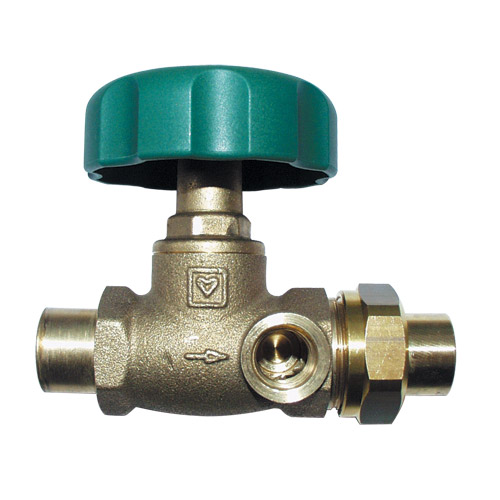

HERZ-Isolating valve, straight pattern

both sides have been drilled, a plug has been mounted, dezincification resistant brass, seal (from standard acceptable Material) Volume flow class VA, ÖNORM EN 1213. Max. operation temperature 90 °C. Max. operaion pressure, 10 bar max. Differential pressure on closed seat 10 bar. accessory: 2 0275 09 charging & draining valves have to be ordered separately.

Product List

Code Qty Product Description
  • DN
  • l/s
  • Rohr Ø mm
 Order
2421501 HERZ-Isolating valve, straight pattern
  • 15
  • 0,20
  • 15
2421502 HERZ-Isolating valve, straight pattern
  • 20
  • 0,40
  • 18
2421503 HERZ-Isolating valve, straight pattern
  • 25
  • 0,70
  • 22
