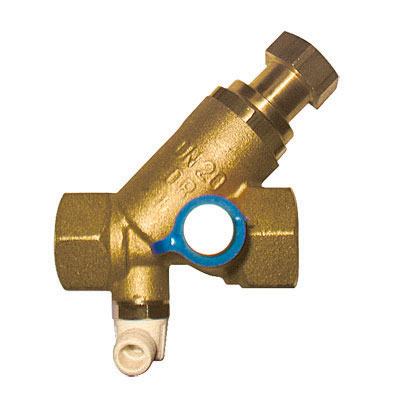

Thermostatic flow control valve for limiting water flow temperature with circulating pump, in the form of a proportional controller. Inclined model, dezincification resistant brass body and water bearing parts. Socket thread according to to ISO 7/1 (Rp), Factory setting at 52 °C, secured against excess temperatures up to 90 °C. For rising temperatures the valve cone is closed via the thermostatic element. For decreasing temperatures, the valve cone is opened via an opening spring. Compression adapters 1 6292 01 for 15 mm copper pipe, and 1 6092 01 for 16 x 2.0 mm plastic pipe have to be ordered separately.
Code | Qty | Product | Description |
|
Order |
---|---|---|---|---|---|
2401051 | HERZ-Circulation Temperature Controller for District Heating Plants |
|
|
||
2401052 | HERZ-Circulation Temperature Controller for District Heating Plants |
|
|
