HERZ-Shutoff Valves, Flanged Version

4218AGF

HERZ-Shutoff Valves, Flanged Version

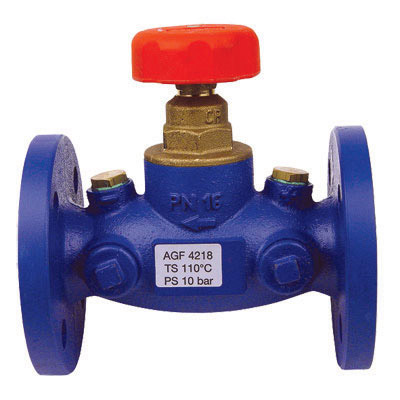

Body made of cast iron GJL 250 according to EN 1561, flange according to EN 1092, PN 16; length according to ÖNORM EN-558-1, basic series 1, blue enamel coating. Valve upper part made of brass. Non-rising spindle, spindle seal by means of double O-Ring. Dimensions as STRÖMAX-GMF. A permanently elastic soft seal is used as a seat seal. With four bores Rp 3/8, with drain plug. Drain valve 276 has to be ordered separately.

Product List

Code Qty Product Description
  • DIM
  • kvs
  • DN
 Order
1421853 HERZ-Shutoff Valves, Flanged Version
  • 1
  • 11,0
  • 25
1421854 HERZ-Shutoff Valves, Flanged Version
  • 1¼
  • 20,1
  • 32
1421855 HERZ-Shutoff Valves, Flanged Version
  • 1½
  • 30,4
  • 40
1421856 HERZ-Shutoff Valves, Flanged Version
  • 2
  • 36,9
  • 50
1421857 HERZ-Shutoff Valves, Flanged Version
  • 2½
  • 62,5
  • 65
1421858 HERZ-Shutoff Valves, Flanged Version
  • 3
  • 75,0
  • 80
