Herz Valves UK Ltd. - DRV, Inclined Model
Feel the Water

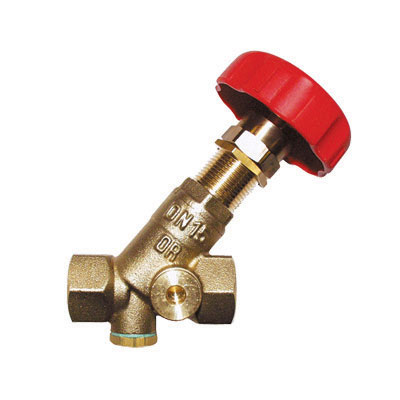

DRV, Inclined Model

4117MR

DRV, Inclined Model

Dezincification Brass version, O Ring, spindle seal. Memory stop by means of an external nut, threaded end connections BSP. DN 15 - DN 50: 2 bores 1/4 with screw plugs t 1 0273 09. 1 bore 1/4 with screw plugs 273. Handwheel position marker 1 6517 05 is included. Drain valve 0276 has to be ordered separately. Compression adapter: DN 15: Universal models with special sockets for threaded pipes and compression adapters. DN 20: Adapter 1 6266 20 and compression adapter G 3/4. Adapter and compression adapters have to be ordered separately.

Product List

Code Qty Product Description
  • kvs
  • DN
Order
1411721 DRV, Inclined Model
  • 4,75
  • 15
1411722 DRV, Inclined Model
  • 6,12
  • 20
1411723 DRV, Inclined Model
  • 10,4
  • 25
1411724 DRV, Inclined Model
  • 15,97
  • 32
1411725 DRV, Inclined Model
  • 23,5
  • 40
1411726 DRV, Inclined Model
  • 47,89
  • 50
