Herz Valves UK Ltd. - Differential Pressure Controller
Feel the Water
Differential Pressure Controller

4007

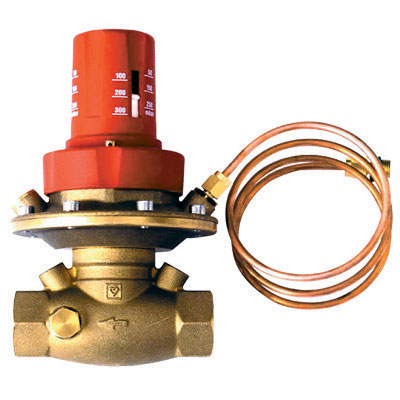

Differential Pressure Controller

Proportional controller, for two-pipe systems with thermostatic radiator valves. Differential pressure 50–300 mbar, continuously adjustable. Dezincification resistant brass body, pipe connection with threaded pipe connection on both sides, including capillary 1000 mm. 2 bores 1/4, with screw plug 1 0273 00. Drain valve 276 has to be ordered separately.

Product List

Code Qty Product Description
  • DIM
  • DN
  • l/h
Order
1400701 Differential Pressure Controller
  • 1/2
  • 15
  • 50-1200
1400702 Differential Pressure Controller
  • 3/4
  • 20
  • 50-1200
1400703 Differential Pressure Controller
  • 25
  • 200-4000
1400704 Differential Pressure Controller
  • 32
  • 250-4250
1400705 Differential Pressure Controller
  • 40
  • 200-5750
1400706 Differential Pressure Controller
  • 50
  • 750-9000
1400707 Differential Pressure Controller
  • 65
  • 750-10000
1400708 Differential Pressure Controller
  • 80
  • 750-12000
1400751 Differential Pressure Controller
  • 1/2
  • 15
  • 100-600
1400752 Differential Pressure Controller
  • 3/4
  • 20
  • 150-780
1400753 Differential Pressure Controller
  • 25
  • 200-1500
1400754 Differential Pressure Controller
  • 32
  • 300-2500
1400755 Differential Pressure Controller
  • 40
  • 400-4700
1400756 Differential Pressure Controller
  • 50
  • 600-6100
1400757 Differential Pressure Controller
  • 65
  • 750-10000
1400758 Differential Pressure Controller
  • 80
  • 750-12000
