Herz Valves UK Ltd. - Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple
Feel the Water
Search

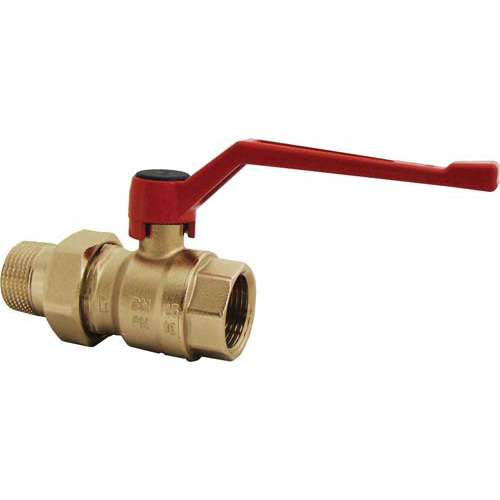

Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple

2216

Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple

Body made of forged DZR-brass according to EN 12420, seals PTFE. Chrome-plated ball with full bore. Female thread according to ISO 228. Operating temperature range from -30°C to 150°C. (Water from 0°C to 110°C), for all non-aggressive media such as water, oil, air, fuel oil or lubricating oil.

Product List

Code Qty Product Description
  • DIM
  • PN
 Order
1221601 Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple
  • 15
  • 16
1221602 Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple
  • 20
  • 16
1221603 Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple
  • 25
  • 16
1221604 Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple
  • 32
  • 16
1221605 Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple
  • 40
  • 16
1221606 Ball valve with lever (alluminium alloy), PN 16, socket x connection nipple
  • 50
  • 16
