2211

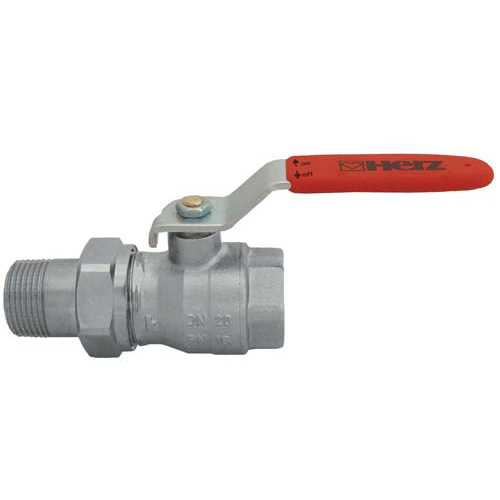

Ball valve with lever (steel), PN 16, socket x connection nipple
Body made of forged brass according to
EN 12420, nickel plated, seals PTFE.
Chrome-plated ball with full bore. Female thread
according to ISO 228 Operating temperature range
from -30 °C to 150 °C. (Water from 0 °C to 110 °C),
for all non-aggressive media such as water, oil, air,
fuel oil or lubricating oil.
Product List
| Code | Qty | Product | Description | Order |
|---|---|---|---|---|
| 1221121 | Ball valve with lever (steel), PN 16, socket x connection nipple |
|
||
| 1221122 | Ball valve with lever (steel), PN 16, socket x connection nipple |
|
||
| 1221123 | Ball valve with lever (steel), PN 16, socket x connection nipple |
|
||
| 1221125 | Ball valve with lever (steel), PN 16, socket x connection nipple |
|
||
| 1221126 | Ball valve with lever (steel), PN 16, socket x connection nipple |
|
