2211

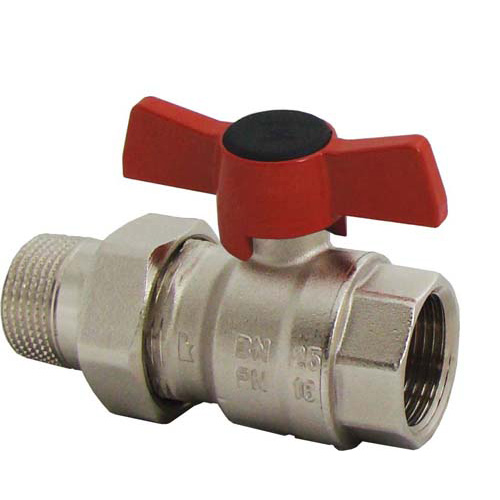

Ball valve with T-handle (alluminium alloy), PN 16, socket x Connection nipple
Body made of forged brass according to
EN 12420, nickel plated, seals PTFE.
Chrome-plated ball with full bore. Female thread
according to ISO 228 Operating temperature range
from -30 °C to 150 °C. (Water from 0 °C to 110 °C),
for all non-aggressive media such as water, oil, air,
fuel oil or lubricating oil.
Product List
| Code | Qty | Product | Description | Order |
|---|---|---|---|---|
| 1221111 | Ball valve with T-handle (alluminium alloy), PN 16, socket x Connection nipple |
|
||
| 1221112 | Ball valve with T-handle (alluminium alloy), PN 16, socket x Connection nipple |
|
||
| 1221113 | Ball valve with T-handle (alluminium alloy), PN 16, socket x Connection nipple |
|
||
| 1221114 | Ball valve with T-handle (alluminium alloy), PN 16, socket x Connection nipple |
|
