2201

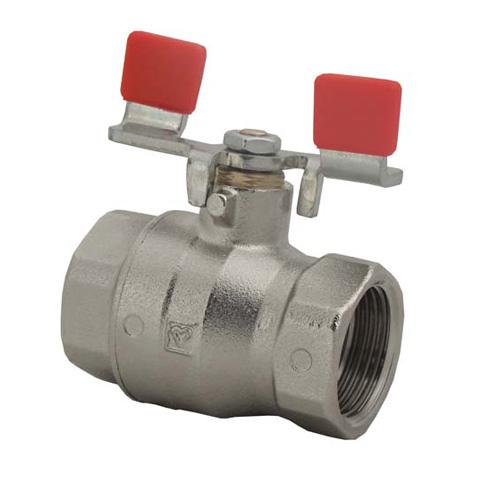

Ball valve with lever (steel, nickel-plated), PN 25, socket x socket
Body made of forged brass according to
EN 12420, nickel plated, seals PTFE.
Chrome-plated ball with full bore. Female thread
according to ISO 228 Operating temperature range
from -30 °C to 150 °C. (Water from 0 °C to 110 °C),
for all non-aggressive media such as water, oil, air,
fuel oil or lubricating oil.
Product List
| Code | Qty | Product | Description | Order |
|---|---|---|---|---|
| 1220131 | Ball valve with lever (steel, nickel-plated), PN 25, socket x socket |
|
||
| 1220132 | Ball valve with lever (steel, nickel-plated), PN 25, socket x socket |
|
||
| 1220133 | Ball valve with lever (steel, nickel-plated), PN 25, socket x socket |
|
||
| 1220134 | Ball valve with lever (steel, nickel-plated), PN 25, socket x socket |
|
