- Cost, time-and space-saving mounting of the
boiler to the pipe line systems
- For direct heating circuits
- Pre-assembled connection set for pumps with
length 130 mm
- Insulation as standard

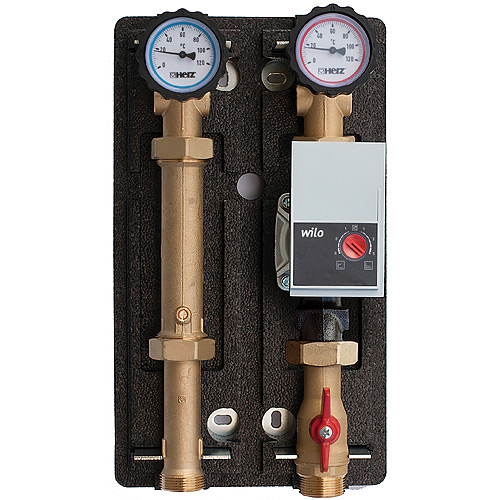

Consisting of:
- Integrated ball valve with thermometer with
handle (red - Supply, blue - Return)
- Distance piece with check valve
- Flanged pipe with isolating valve in supply
- isolation
- Circulation pump - Wilo Stratos Pico
- Qmax = 4.0 m3/h, Hmax = 6.0 m
- Distance between supply and return
pipe: 125 mm
- Max. temperature: 110 °C.
- Max. operating pressure: 10 bar
- Temperature range: from 0 °C to 120 °C.
