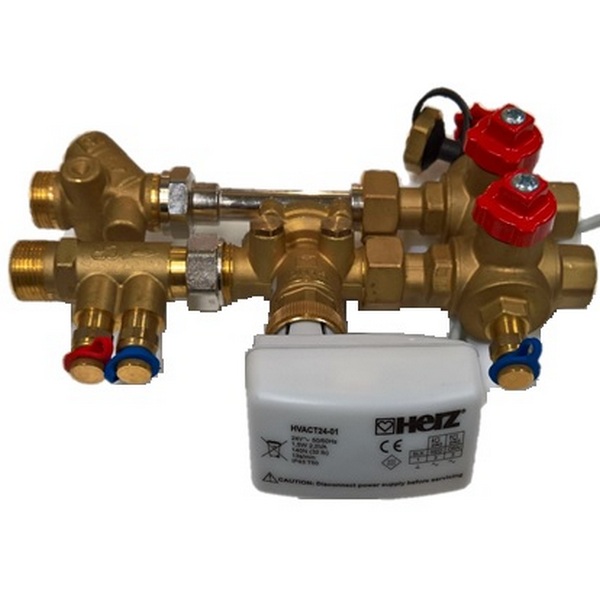

Compact Connect 4 for direct assembly onto FCU horizontal orientation

PN16 Compact Connect 4 PICV

Preassembled unit designed for direct assembly to terminal unit 40mm centres with copper tails presented horizontally, utilizing 4006 Pressure Independent Balancing Control Valve SMART
Including flushing bypass, isolating valves, flow verification device, strainer with drain valve.

Hose union supplied separately if required

Actuators required, supplied separately

Product List

Code	Product	Description	DN Flow range	Order
1460038	HERZ Compact Connect-4	PICV RH Version vertical	15 ULF 0.003 - 0.013 l/s	
1460030	HERZ Compact Connect-4	PICV RH Version vertical	15 LF 0.013 - 0.030 l/s	
1460039	HERZ Compact Connect-4	PICV RH Version vertical	15 MF 0.029 - 0.061 l/s	
1460031	HERZ Compact Connect-4	PICV RH Version vertical	15 0.045 - 0.099 l/s	
1460032	HERZ Compact Connect-4	PICV RH Version vertical	20 0.094 - 0.180 l/s	
1460036	HERZ Compact Connect-4	PICV RH Version vertical	20 HF 0.180 - 0.326 l/s	
1460037	HERZ Compact Connect-4	PICV RH Version vertical	20 UHF 0.325 - 0.462 l/s	
1470008	HERZ Compact Connect-4	PICV LH Version vertical	15 ULF 0.003 - 0.013 l/s	
1470000	HERZ Compact Connect-4	PICV LH Version vertical	15 LF 0.013 - 0.030 l/s	
1470009	HERZ Compact Connect-4	PICV LH Version vertical	15 MF 0.029 - 0.061 l/s	
1470001	HERZ Compact Connect-4	PICV LH Version vertical	15 0.045 - 0.099 l/s	
1470002	HERZ Compact Connect-4	PICV LH Version vertical	20 0.094 - 0.180 l/s	
1470006	HERZ Compact Connect-4	PICV LH Version vertical	20 HF 0.180 - 0.326 l/s	
1470007	HERZ Compact Connect-4	PICV LH Version vertical	20 UHF 0.325 - 0.462 l/s	
